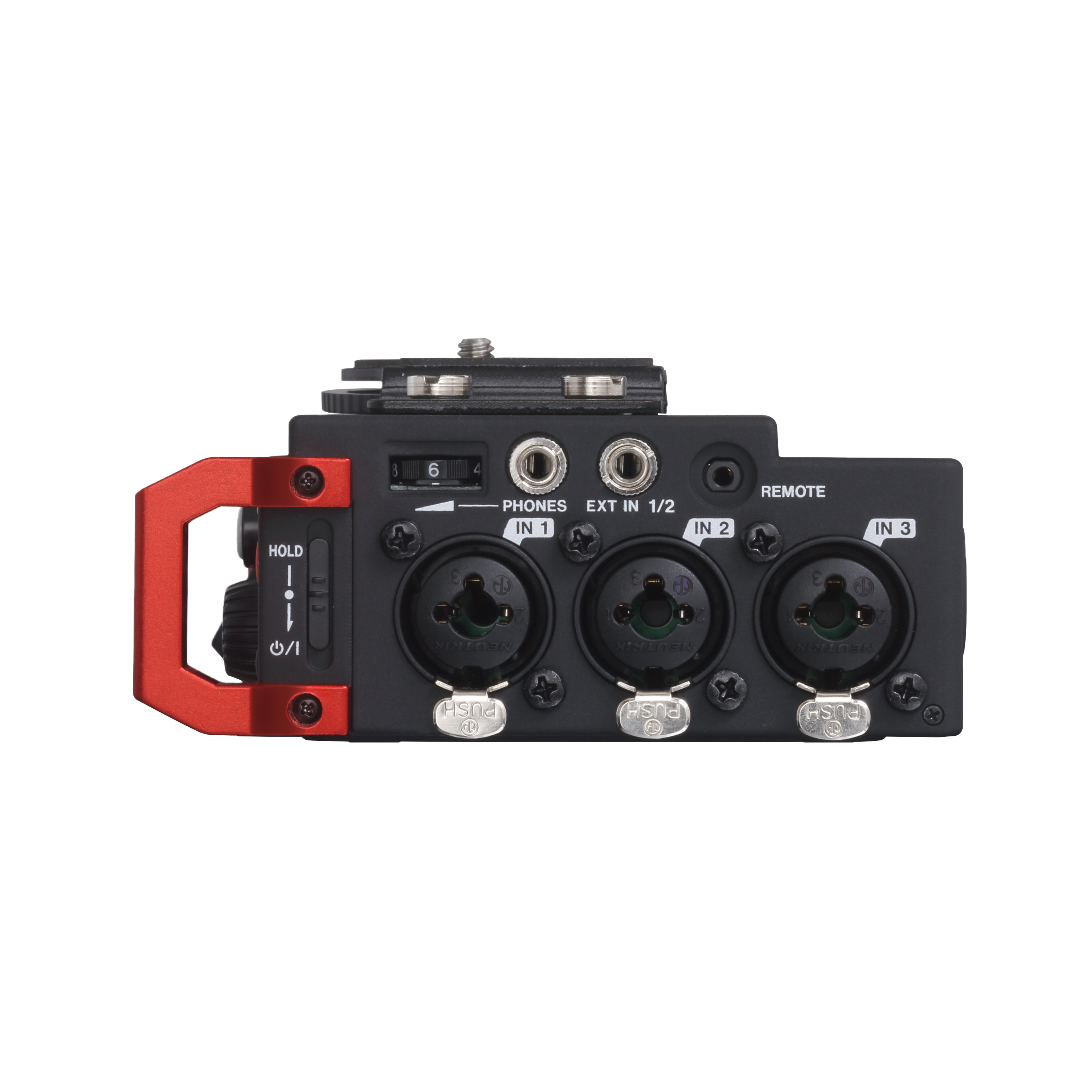

Tascam DR-701D
The ultimate audio recording solution for filmmakers.
Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.
Its four balanced XLR-1/4" combo inputs handle mic or line-level signals, A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver.
The ultimate audio recording solution for filmmakers.
Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.
Its four balanced XLR-1/4" combo inputs handle mic or line-level signals, A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver.
The ultimate audio recording solution for filmmakers.
Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.
Its four balanced XLR-1/4" combo inputs handle mic or line-level signals, A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver.
Features
Media: SD card (64MB to 2GB)
SDHC card (4GB to 32GB)
SDXC card (48GB to 128GB)
Audio Format: *.wav 44.1k/48k/96k/192k Hz, 16/24-bit
*.bwf 44.1k/48k/96k/192k Hz, 16/24-bitNumber of input channels: 44.1k/48k/96k Hz 4 max.
192kHz 2 max.Analog audio inputs: 4 + XLR can provide phantom power
48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
*The maximum input level is the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting.
*The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.Connection Type XLR / TRS (1/4") Insert
Analog audio output: 3.5mm (1/8") stereo mini jack
Camera audio output: 3.5mm (1/8") stereo mini jack
Headphone output: 3.5mm (1/8") stereo mini jack
USB Micro-B - USB2.0 HIGH-SPEED mass storage class
HDMI In and out
Timecode In: BNC Connector
10k ohms / SMPTE 12M-1999 compliant4 AA batteries
Approx. Runtime:
About 3h:45m : Built-in mic used for 3/4ch, Phantom power unused, HDMI not connected
About 2h:00m : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 1h:30m : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Tascam DR-701D Manual here
